直流電24V藍牙調光器 DC24V Bluetooth Dimmer

---

譜羅的BFi53CVD 是一款專為 DC 24V CV光源所設計的多通道恆壓調光控制器， 支援 Bluetooth NLC 照明規範 (NLC Profile) 與 NLC 能源監測規範 (Energy Monitor NLC Profile)。

內建多通道 PWM 控制與能耗回報功能，可與各類 EnOcean 自發電開關、感測器互動應用。

BFi53CVD is a multi-channel constant-voltage dimming controller designed specifically for DC 24V CV lighting sources.

It supports both the Bluetooth NLC (Networked Lighting Control) Profile and the Energy Monitoring NLC Profile, enabling full compliance with Bluetooth lighting control standards.

The controller features multi-channel PWM dimming and real-time energy reporting, and can interact seamlessly with various EnOcean self-powered switches and sensors for intelligent and energy-efficient lighting applications.

• 援 5 通道獨立輸出（根據光源特性可設定模式用於冷暖光、雙色溫或 RGB+CCT 應用）
• 相容 Bluetooth NLC Mesh Network，可編輯群組、情境、感測器觸發另外結合ER0時間可使用定時功能
• 支援 Energy Monitoring 能源回報與場景控制
• 直流 DC 24V 電源輸入以及光源
• 單通道輸出最大流為6A 最大輸出總功率為120W

• 5 independent output channels, configurable by light source type — suitable for tunable white (CCT), dual-color, or RGB+CCT applications.
• Compatible with Bluetooth NLC Mesh Network, supporting group control, scene configuration, and sensor-triggered automation.
  When combined with the ER0 controller, timer-based scheduling is also available.
• Supports Energy Monitoring for real-time power feedback and integrated scene control.
• DC 24V input for both power and lighting output.
• Maximum output current: 6A per channel
• Total output power: up to 120W

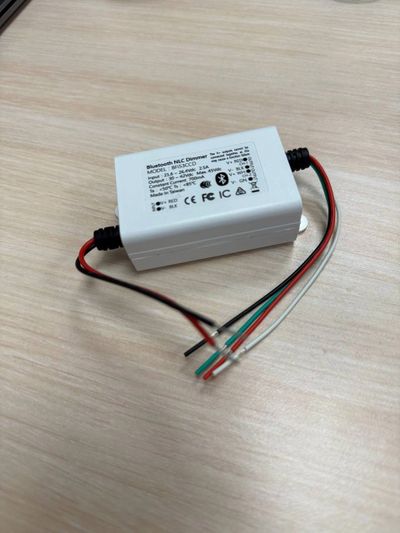

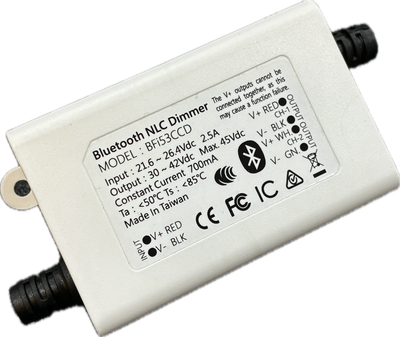

譜羅的BFi53CCD 是一款專為 DC 24V CC 36V COB光源設計的雙通道恆流調光控制器， 支援 Bluetooth NLC 照明規範 (NLC Profile) 與 NLC 能源監測規範 (Energy Monitor NLC Profile)。

內建雙通道 PWM 控制與能耗回報功能，可與各類 EnOcean 自發電開關、感測器互動應用。

BFi53CCD is a dual-channel constant-current dimming controller designed for DC 24V / 36V COB lighting sources.

It supports both the Bluetooth NLC (Networked Lighting Control) Profile and the Energy Monitoring NLC Profile, ensuring full compliance with Bluetooth lighting control standards.

The controller features dual-channel PWM dimming and energy feedback capabilities, and can interact seamlessly with various EnOcean self-powered switches and sensors for intelligent and energy-efficient lighting applications.

• 援 2通道獨立25W輸出
• 相容 Bluetooth NLC Mesh Network，可編輯群組、情境、感測器觸發另外結合ER0時間可使用定時功能
• 支援 Energy Monitoring 能源回報與場景控制
• 直流 DC 24V 電源輸入以
• 單通道輸出最大功率為25W 標準輸出電壓為36V

• 2 independent output channels, each supporting up to 25 W output power.
• Compatible with Bluetooth NLC Mesh Network, enabling group control, scene configuration, and sensor-triggered automation.
  When combined with the ER0 controller, timer-based scheduling is also available.
• Supports Energy Monitoring for real-time power feedback and integrated scene control.
• DC 24 V input power, designed for 36 V constant-current lighting applications.
• Maximum power output: 25 W per channel (36 V standard output voltage).
